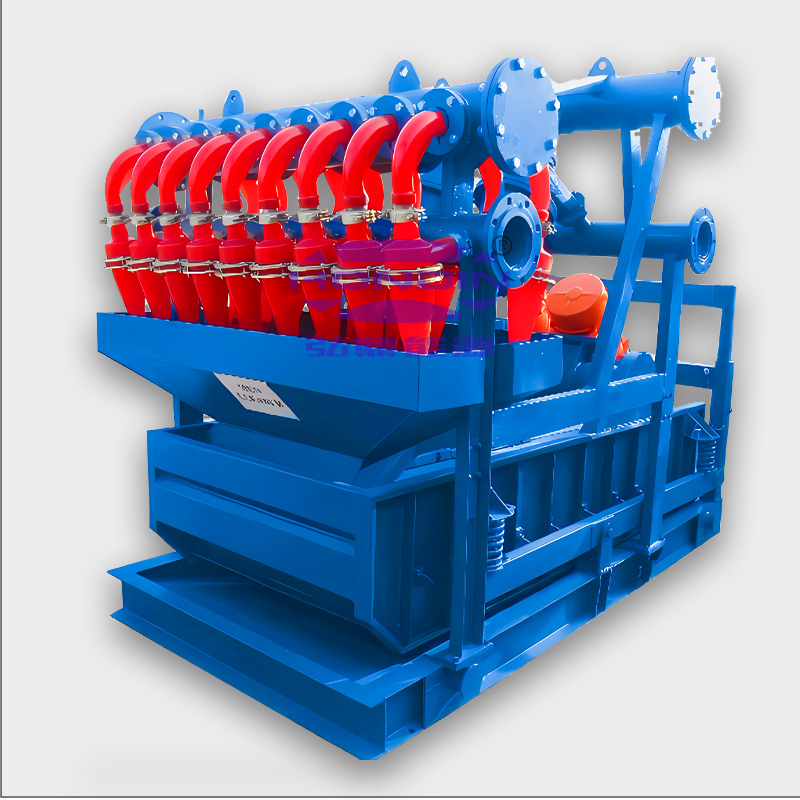

Hondin mud cleaner is the second and third-class solids control equipment to deal with drilling fluids, combined desander cyclone, desilter cyclone, and an underset shale shaker together. Its structure is compressed, small in size with powerful, and is the ideal choice in second and third-class solids control equipment.
Detailed Photos
Detailed Parameters
| Modol |
SMC240 |
QJZS210 |
QJZS316 |
| Capacity |
240m³/h |
240m³/h |
360m×/h |
| Desilter Cones |
16×100mm/16×4" |
10×100mm/10×4" |
16×100mm/16×4" |
| Desilter Cones |
2×300mm/2×12" |
2×250mm/2×10" |
3×300/3×12" |
| Vibrating Mode |
Linear Motion |
| Matching Shaker |
HDZS584 |
HDZS583 |
HDZS584 |
| Shaker Motor |
2×1.72/1.865/2.2KW |
2×1.5/1.72/1.868KW |
2×1.72/1.865/2.2KW |
| Screen Area |
2.73m² |
2.04m² |
2.73m² |
| Screen of Deck |
4panels |
3panels |
4panels |
| Remarks |
Each4"Cones=50-75GPM,10"Cone=400-528GPm |
product advantage
- Two-stage integrated desanding & desilting, high purification efficiency
- Compact structure, save installation space
- Wear-resistant screen, low failure rate & maintenance cost
- High mud recovery rate, reduce drilling cost
- Easy to assemble, disassemble and transport
